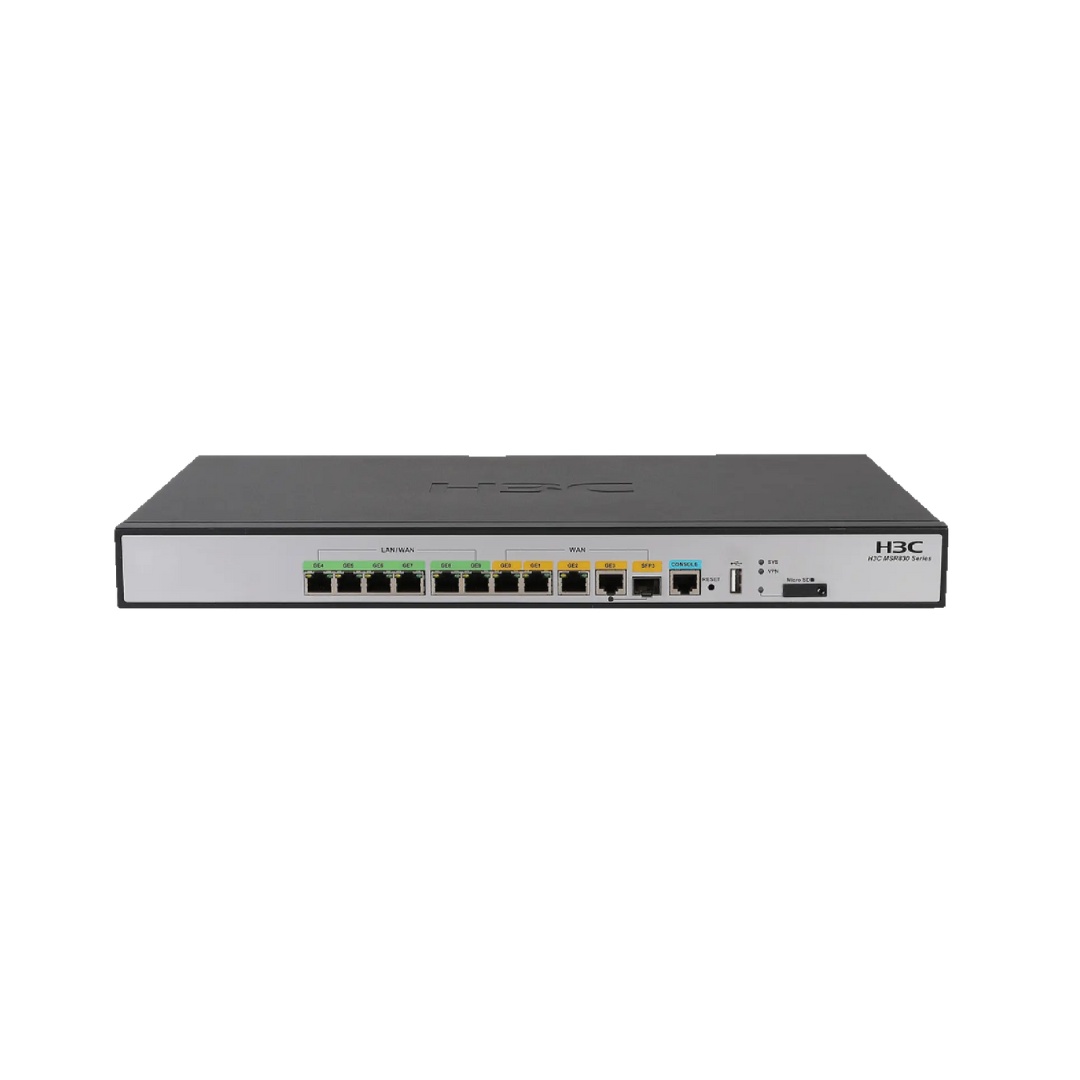

RT-MSR830-10HI-GL

Name: RT-MSR830-10HI-GL
Brand: H3C

93.520,00 RSD / kom

troškovi isporuke nisu uključeni

Opis

H3C MSR610 ruter za preduzeća sa 10 gigabitnih Ethernet portova

Performanse prosleđivanja: 1 Gbps

CPU: 1.3 GHz

Memorija: 1 GB

Interna memorija (podrazumevana/maksimalna): 256 MB/ 32 GB

Eksterna memorija: Micro SD kartica

USB port: 1

Konzolni portovi: 1

WAN portovi: 3 x GE copPer port, 1 x GE port

LAN portovi: 6 x GE portovi (mogu se konfigurisati kao WAN interfejsi)

Maksimalna potrošnja: 22 W

Nazivni napon: 100 VAC to 240 VAC @ 50 Hz/60 Hz

Dimenzije: 440 x 225 x 44 mm

Radna temperatura: 0°C to 45°C

Layer 2 switching: Ethernet, Ethernet II, VLAN (port-based VLAN, guest VLAN), 802.3x, 802.1p, 802.1Q, 802.1X, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE client, PPPoE server, and DDR

IP servisi: Unicast/multicast, TCP, UDP, IP option, IP unnumbered, policy-based routing, NetStream, and sFlow

IP Komunikacija: Ping, Tracert, ICMP, DHCP server, DHCP relay, DHCP client, DNS client, DNS proxy, DDNS, NTP, and SNTP

IPv4 rutiranje: Static routing, Dynamic routing: RIPv1/v2, OSPFv2, BGP, IS-IS, Route iteration, Policy routing, Equal-cost multi-path routing (ECMP), Multicast routing: IGMPv1/v2/v3, PIM-DM, PIM-SM, MBGP, MSDP

Kvalitet usluge: LR, port-based mirroring, Port Trust Mode, and port priority, Committed access rate (CAR), FIFO, WFQ, CBQ, Generic Traffic Shaping (GTS), Traffic classification

Bezbednost: PPPoE client & server, portal, 802.1X, Local authentication, RBAC, RADIUS, TACACS+, Basic Firewall Function, ASPF, ACL, filter, connection limit, IKE, IPsec, L2TP, NAT/NAPT, PKI, RSA, SSH v1.5/2.0, URPF, mGRE, GRE, ARP attack prevention,SSL VPN, GDVPN, AES, DES, 3DES, MD5, SHA1

Dostupnost: VRRP, VRRPv3, Bandwidth-based load balancing and backup, IP address-based load balancing and backup, NQA collaboration with routing, VRRP or interface backup.

Upravljanje i održavanje: Couldnet APP management, SNMP v1/v2c/v3, MIB, SYSLOG, RMON, BiMS remote management, booting from USB drive, CLI, file system, and dual image, DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, and SNMP, Console port login, Telnet (VTY) login, SSH login, and FTP login.
