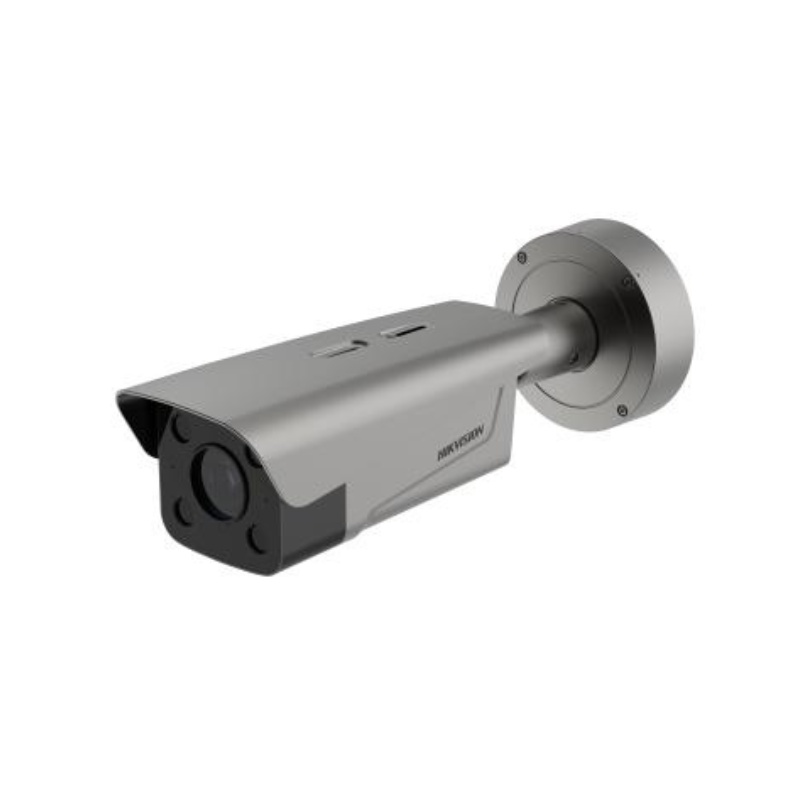

DS-TCG406-E (S) (12V/Poe)(2812)

Opis

4 MP Access ANPR Mrežna Kamera

Rezolucija snimanja:  2688 × 1520 @25fps

Senzor slike: 1/1.8" Progressive Scan CMOS

Osetljivost: Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR

FOV (Polje vidljivosti): horizontalno 114.5° - 41.8° vertikalno  59.3° - 23.6°, dijagonalno 141.1° to 48°

Unapređenje slike: 140 dB WDR, BLC, HLC, 3D DNR

Osvetljenje: IC/Belo svetlo dometa do 50m/20m

Režim snimanja: Tip aktiviranja: Video Detection, I/O Coil, Radar, Mixed Traffic

Tip fotografije: Scene Picture, Scene Picture + Close-up Picture

Režim scene: Entrance & Exit Toll Gate, Underground Parking Entrance & Exit

Tip snimanja: Strobe Light Mode

Interfejsi: 1 RJ45 10 M/100 M self-adaptive Ethernet port, SD kartica do 1 Tb, Reset dugme, Alarm ulaz/izlaz: 3/1(max. 12 VDC, 30 mA), Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit), RS-232, RS-485

Protokoli: SRTP (Secure Real-time Transport Protocol), TCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket

Mrežni standardi: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, Otap, Guarding Vision Platform

Pametne Funkcije: LPR tačnost, prepoznavanje tipa vozila, prepoznavanje boje vozila, prepoznavanje marke vozila

Napajanje i potrošnja: 12 to 24 VDC/PoE (802.3af, 44 V to 57 V), 300 mA to 230 mA, 10W max

Radna temperatura: -30°C to 60°C

Zaštita: IK10 (IEC 62262: 2002), IP67 (IEC 60529-2013)

Dimenzije (DxŠxV): 415 mm × 145 mm × 145 mm

Materijal: Prednji poklopac: metal, Kućište: metal, Nosač: metal

Težina: 3.25 kg

Kompatibilni pribor:

Šolja stiže uz kameru

L700-R125, DS-1475ZJ-SUS/BJZ, L1500-X800-R125, DS-1476ZJ-SUS/BJZ
